Ⅰ、Equipment Application:

This testing machine is designed for a wide range of tests, including tensile, compression, bending, shear, peeling, and tearing of both metal and non-metal materials, such as rubber, plastics, wires and cables, composite materials, plastic profiles, metal rods, sheets, springs, and components. It complies with various international standards, including GB, ISO, JIS, DIN, ASTM, etc., and can be configured to execute custom tests based on user requirements. This machine is an essential tool for quality control departments, research institutions, universities, and industrial enterprises.

Ⅱ、Measurement Parameters:

1、Maximum Test Force: 5 kN

2、Test Force Measurement Range: 0.4-100% FS

3、Test Force Accuracy: ±0.5% of the indicated value or better

4、Test Force Resolution: 1/1,000,000 of the maximum test force, with a sampling frequency of 1000Hz (original third-party calibration report available for reference), no range switching during testing

5、Crosshead Displacement Resolution: 0.03 μm；

6、Displacement Speed Control Range: 0.001 mm/min to 500 mm/min, stepless adjustment, fully adjustable

7、Displacement Relative Error: ±0.5% of the indicated value or better；

8、Force Control Speed Range: 0.005-5% FS/s; force control speed error: ≤±0.5%；

9、Effective Test Space: 800 mm：

10、Test Space Width: 400 mm：

11、Power Supply: 220V ±10%, 50Hz, 750W

12、Mainframe Dimensions: 740 × 500 × 1680 mm；

13、Mainframe Weight: Approximately 450 kg;

14、Operating Environment: Room temperature to 30°C, relative humidity not exceeding 80%；

Ⅲ、Product Configuration

1、Servo Driver: Taiwan Delta Servo Driver

2、Servo Motor: Taiwan Delta Servo Motor

3、Load Sensor: High-precision load sensor (5 kN)

4、Screw: Precision ball screw

5、Fixtures: Tensile fixtures, compression accessories, and bending fixtures

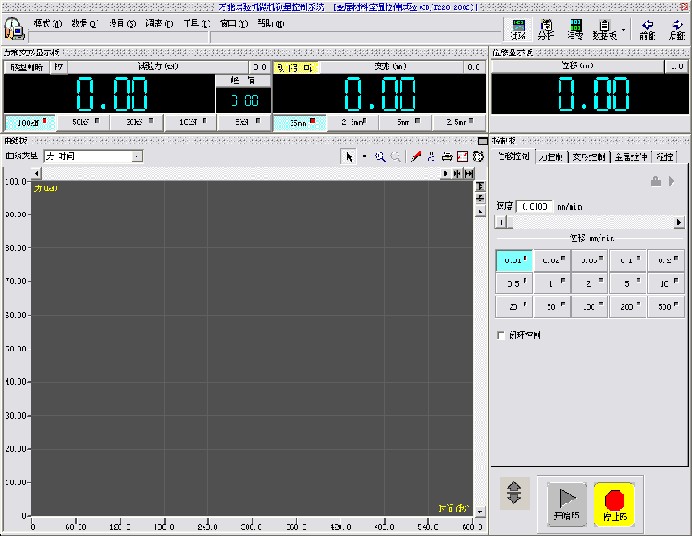

6、Tianchen Closed-Loop Measurement System: A complete measurement system using force, displacement, strain, and other control modes. The system can display test curves such as force-displacement, force-time, and stress-strain in real time, and automatically compute parameters such as maximum load, tensile strength, and elongation at break

7、Lenovo Computer and Widescreen LCD Monitor；

8、Dedicated Test Software – TENSON: Developed by Tianchen Group, this software supports multiple testing standards, including GB, ISO, JIS, DIN, and ASTM. It is fully open-source, highly functional, easy to operate, and includes free software upgrades. It can also be customized to meet specific user needs. (Software and controller copyright certificates are included.)

Ⅳ、Product Features and Functions：

1、Mainframe:

1.1The machine is equipped with an imported full-digital AC servo motor and servo driver. This system ensures high precision and stability, smooth and reliable operation, fast response, and low noise. It features comprehensive protection functions, including overload, overcurrent, overvoltage, undervoltage, overheating, abnormal stop, and fault alarms. Parameters can be adjusted based on the machine model and test type, optimizing the servo system’s performance. The system uses position control mode, and the interface unit is fully digitized, eliminating zero drift and low-speed instability caused by the speed loop.

1.2The transmission system utilizes a precision ball screw and high-precision reduction mechanism for smooth, low-noise operation without backlash.

2、Measurement and Control System, Operating Software, and Data Processing System:

The system includes a high-precision data acquisition board (24-bit A/D data acquisition) for fully digital adjustment, high-precision amplification, and accurate control (integrated within the computer). Advanced chip integration technology, paired with a high-precision ±1,000,000-code acquisition card, maximizes sensor measurement accuracy. The system is highly integrated, reliable, and user-friendly. The control software automatically calculates conventional data such as elastic modulus, yield strength, tensile strength, and fracture strength and computes force, stress, displacement, and deformation data at any specified point during the test.

2.1 Automatic Zeroing: The measurement system automatically zeroes when the test starts.；

2.2 Automatic Shutdown: The crosshead stops automatically after the sample breaks；

2.3 Automatic Calibration: The system can automatically calibrate the indicated value accuracy.；

2.4 Automatic Data Storage: Test data and conditions are saved automatically, preventing data loss due to oversight.；

2.5 Automatic Speed Adjustment: The crosshead movement speed can automatically change according to preset programs or be adjusted manually during testing.；

2.6 Automatic Control: The system offers closed-loop control modes for speed, displacement, and strain, depending on test requirements.；

2.7 Program Control: Users can customize multi-step control programs following specific programming rules；

2.8 Automatic Data Saving: Upon test completion, all test data and curves are automatically saved；

2.9 Batch Testing: For samples with identical parameters, a single setup allows sequential completion of a batch of tests；

2.10 Automatic Data Analysis: The system automatically analyzes test data according to relevant standards..

2.11 Curve Navigation: Post-test, users can analyze curves and retrieve data corresponding to specific points using the mouse.；

2.12Curve Selection: Users can display and print stress-strain, force-displacement, force-time, and displacement-time curves as needed. These curves clearly depict the sample’s failure process under tensile force and provide detailed data analysis for each point.

2.13Magnified Curve Analysis: Specific segments of test curves can be enlarged for detailed analysis.

2.14 Batch Processing: Multiple test data and curves can be summarized, compared, and displayed or printed.

2.15 Test Reports: Various report editing methods (Excel/Word/advanced custom formats) are available, allowing users to customize the report format as required.

2.16 Limit Protection: Reliable limit protection is included.；

2.17 Overload Protection: The machine automatically shuts down if the load exceeds 2%-10% of the rated value.

2.18 LAN Connectivity: The system reserves a data interface for direct connection to a laboratory’s comprehensive information management network.
