一、 Equipment name: Microcomputer screen display semi-automatic impact testing machine

二、 Model: JBW-500B

三、 Performance Description:

This machine is mainly used to measure the impact resistance of metal materials under dynamic loads, in order to determine the properties of materials under dynamic loads.

This machine is a semi-automatic impact testing machine with a microcomputer screen display. It is controlled by a PC microcomputer and features electric swing, impact, microcomputer measurement, calculation, screen digital display results, and can be printed. It has high work efficiency and testing accuracy.  After impacting the sample, the remaining energy can be used to automatically swing and prepare for the next test. The operation is simple and the work efficiency is high.  Its superiority can be better demonstrated in laboratories that conduct continuous impact tests and in industries such as metallurgy and mechanical manufacturing that conduct a large number of impact tests.  Computers can calculate and display the impact absorption energy, impact toughness, pendulum swing angle, and test average value of materials, and can print the test data and average value for the current test.

4、 Main technical indicators:

1. Impact energy: 250J, 500J

2. Pre swing angle of pendulum: 150 °

3. Distance from the center of the pendulum axis to the impact point: 800mm

4. Impact speed: 5.4m/s

5. Sample support span: 40mm

6. Jaw corner: R1-1.5mm

7. Impact blade fillet: R2-2.5mm

8. Thickness of impact knife: 16mm

9. Angle accuracy: ± 0.1 °

10. Sample size: 10 × 10 × 55mm

11. Dimensions: 2124 mm × 600 mm × 1340 mm

12. Net weight of testing machine: 450Kg

13. Power supply: AC three-phase 380V ± 10% 50HZ 5A

14. Environmental conditions: There are no corrosive media, no vibration, and no strong electromagnetic field interference in the surrounding environment.

5、 Main equipment configuration:

1、 One 500 joule host;

2、 One 250J and one 500J pendulum respectively

3. One motor (installed on the main unit);

4. Take a set of pendulum transmission device (installed on the main engine);

5. One set of automatic hanging device (installed on the host);

6. One set of insurance institution (installed on the host);

7、 One set of safety protection devices;

8. One support calibrator;

9. One sample centering device;

10. One photoelectric sensor;

11. A set of Lenovo microcomputer system;

12. One A4 HP inkjet printer;

13. A set of specialized measurement software.

6、 Measurement and Control Section Description:

Windows platform, screen display, mouse operation;

If you need to output an experimental report, you need to install at least Microsoft Word or Excel version of Office 2000.

The software supports multiple pendulums

Record impact strength, impact energy, etc  The maximum and minimum mean and standard deviation can also be calculated.

Automatic calculation of experimental results

Automatically measure the oscillation period

3 main windows

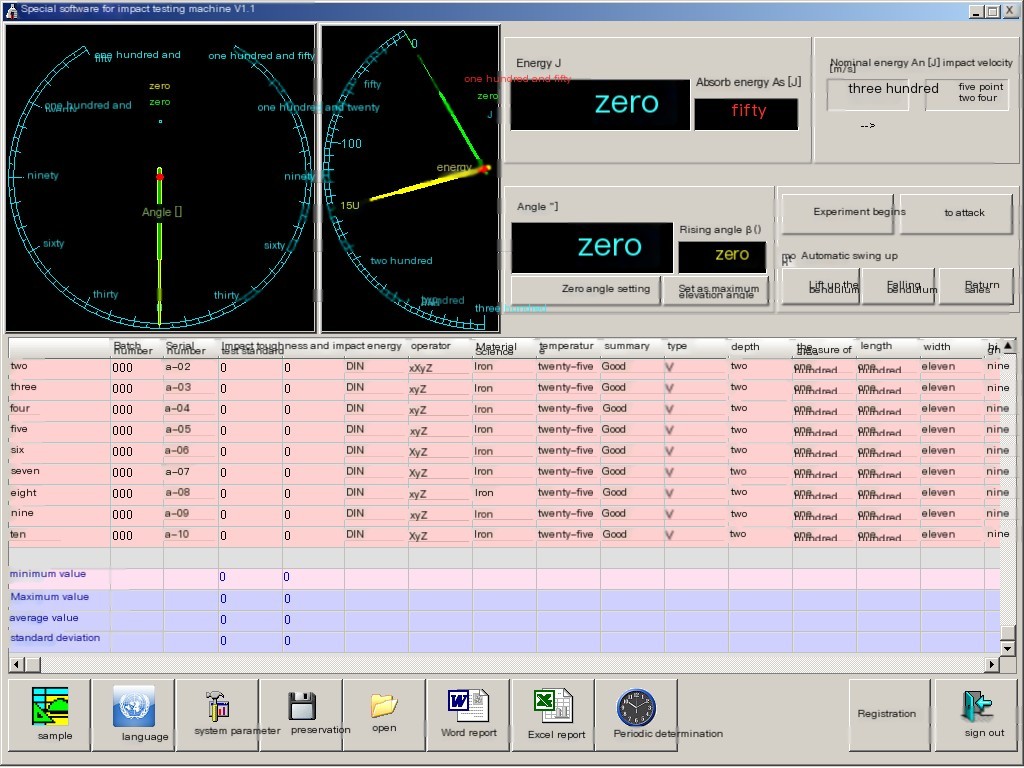

The main window (as shown in the figure) is the software operation control center.  Supervise the management of experimental results

Main Window

The testing software is capable of real-time virtual digital display, monitoring energy and angle values, and maintaining the impact energy of a single strike or swing in real time
