HY-24L of 400kN Anti-slip Coefficient Detector

1. product introduction:

21. The LLG-24HY type anti-slip coefficient detector is mainly applicable to the anti-slip coefficient test of the friction surface of the 10.9 and 8.8 high-strength bolt connection pairs, high-strength large hexagon head bolt connection pairs, and the anti-slip coefficient test of the friction surface of the torsional shear type high-strength bolt connection pairs (special wrench for torsional shear needs to be specially ordered), testing and research.
21. High-strength bolt connection pair: a general term for high-strength bolts and matching nuts and washers;
21. Anti-slip coefficient: when the friction surface of the connecting piece slides in the high-strength bolt connection.OutsideForceRatio to the sum of the pretension of the high-strength bolt perpendicular to the friction surface;
21. LLG-TESTliquid crystal microcomputer dynamometer,There are four physical channels,6Group Total24logical channels.
21. Parameter backup, recovery function, peak hold function, automatic calibration function.
21. high strength large hexagon head bolts specifications:M16，M20，M22，M24，M27，M30。
21. torsional shear type high strength bolt specifications:M16，M20，M22，M24。
21. In order to facilitate the user to connect with the computer set upThe LLG358 interface (to be ordered separately) can transfer the data to the computer for further processing and printing the test report.
21. This equipment is simple to operate, if sent to the measurement department for verification, it is convenient to carry, and the later equipment upgrade and maintenance are also extremely convenient. The settingAt present, it is a kind of high-strength bolt testing instrument with low investment and high return, which is widely popular in scientific research institutions such as high-strength bolt production enterprises, engineering quality testing institutions, steel structure construction units, engineering supervision institutions, high-speed railway, bridge power, and colleges and universities.

• Product technical parameters:

3. parameters and configuration

4. Product and Test Diagram

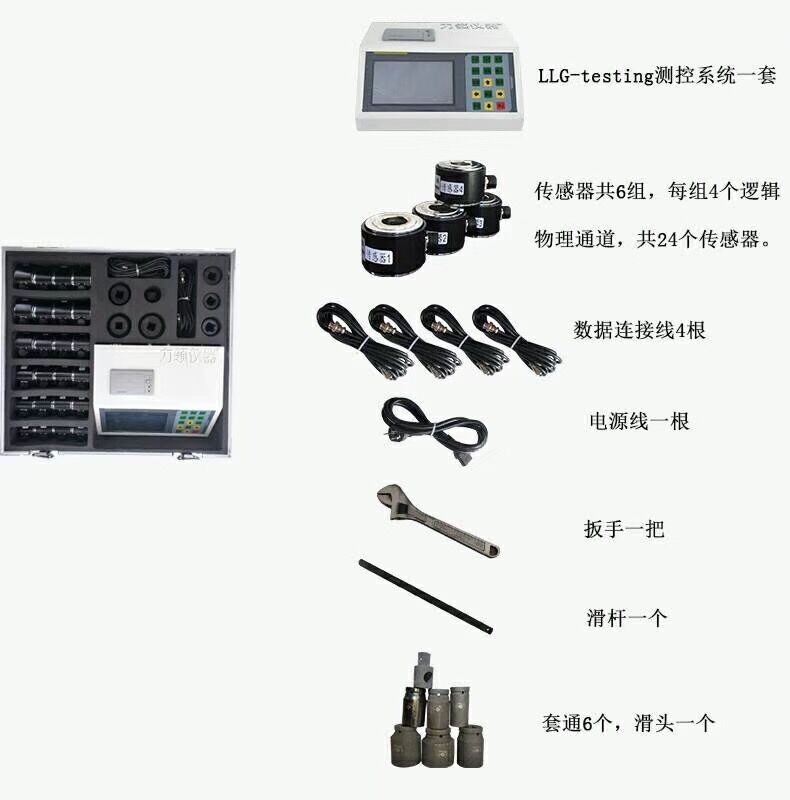

( Figure5.1 llG-24HY whole figure)	(Figure 5.2 Test Example Illustration)

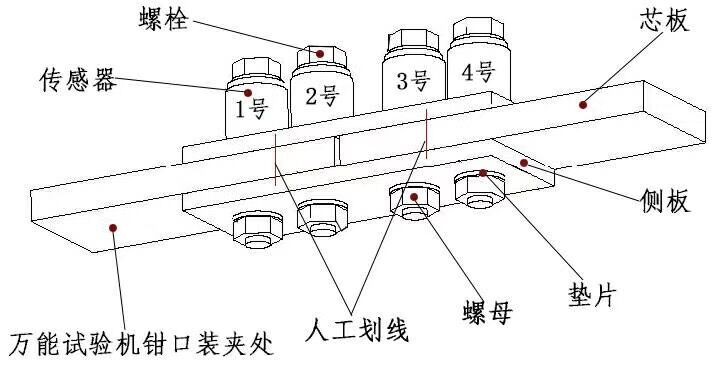

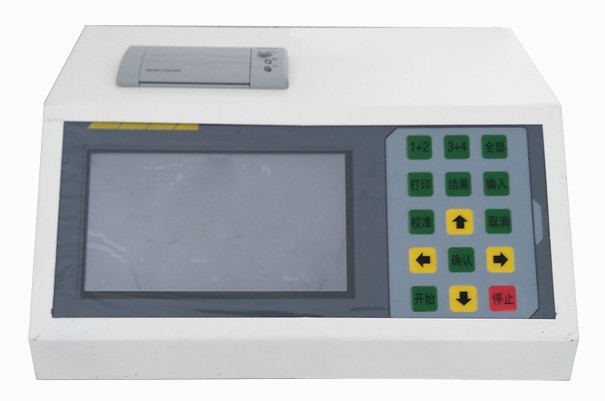

(Fig.Schematic diagram of installation position of 5.3 sliding plate)	(Fig.5.4 slip control instrument)

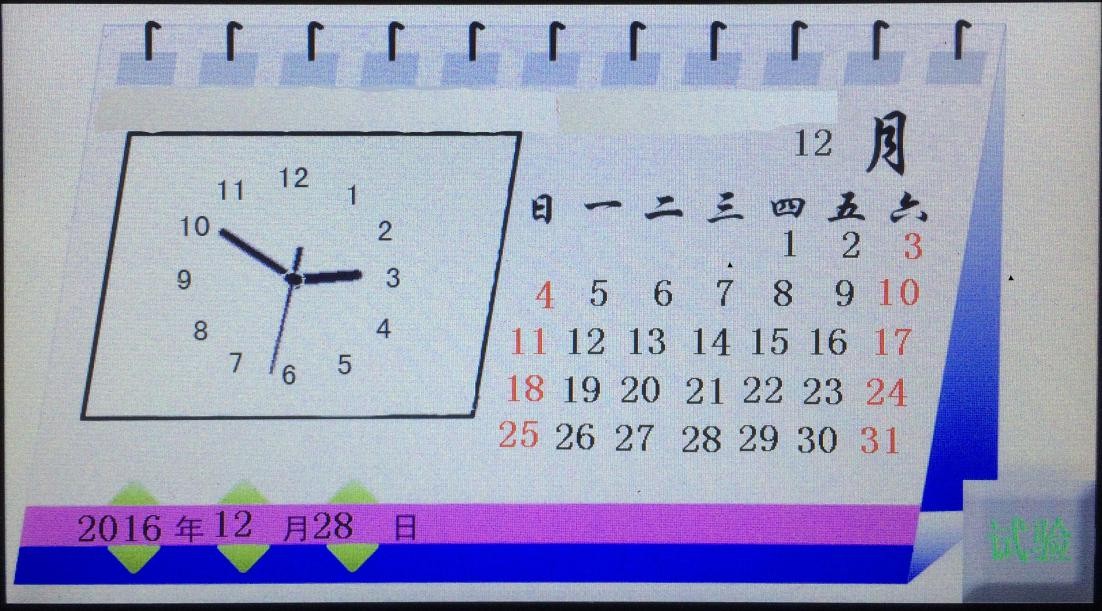

(Test main interface)	(Test status interface)

6. user preparation conditions

1. 21. It is required to specify as much as possible the standard details of the test method to which the test refers..
   21. Provide samples for completion of the test on this machineProductsTESTING AND FACTORY INSPECTION.
   21. Responsible for product receipt, storage and transportation, in place.
   21. Contact the local metrology department to measure the equipment.
   21. Space and power supply required for equipment installation.
