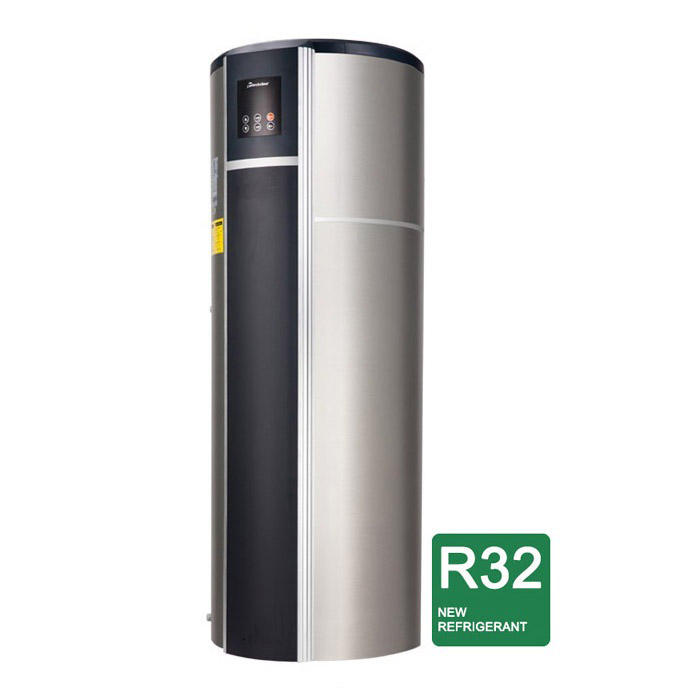

Heat Pump Hot Water Heater R134a -R32 the Efficiency Air to Water Heater

Heat Pump Hot Water Heater R134a -R32 the Efficiency Air to Water Heater

High-efficiency R32 air source heat pump water heater with 150L-300L tank, Panasonic rotary compressor, Class A energy saving for homes and hotels.
WhatsApp: +86 15964012800
E-mail: info@x-precision.com
Inquiry Now
Product Details

Key attributes

typeAir Source Heat PumpHeating capacity3 kW, 2.8kW
energy efficiency ratingClass AapplicationHotel, Garage, Commercial, Household
RefrigerantR32Storage / TanklessStorage
compressorRotaryinstallationFreestanding
app-controlledYeshousing materialPowder coated steel/stainless steel
FeatureEnergy-Savingpower sourceElectric
warranty1 Yearafter-sales service providedFree Spare Parts
operating languageEnglishprivate moldYes
packaging typesCorrugated Boxmodel numberRS-3.6FAD/190L
NameAir source heat pump water heaterFunctionHot water circulation
Compressor BrandPanason. Rotary CompressorRefrigerant typeR134a, R32, R410
Heat exchangerSS316 coilCertificateCE, ERP
Power supply220~240/1/50 (V/Ph/Hz)Heating capacity2.8kW
COP3.5Tank capacity150L-300L

Description:

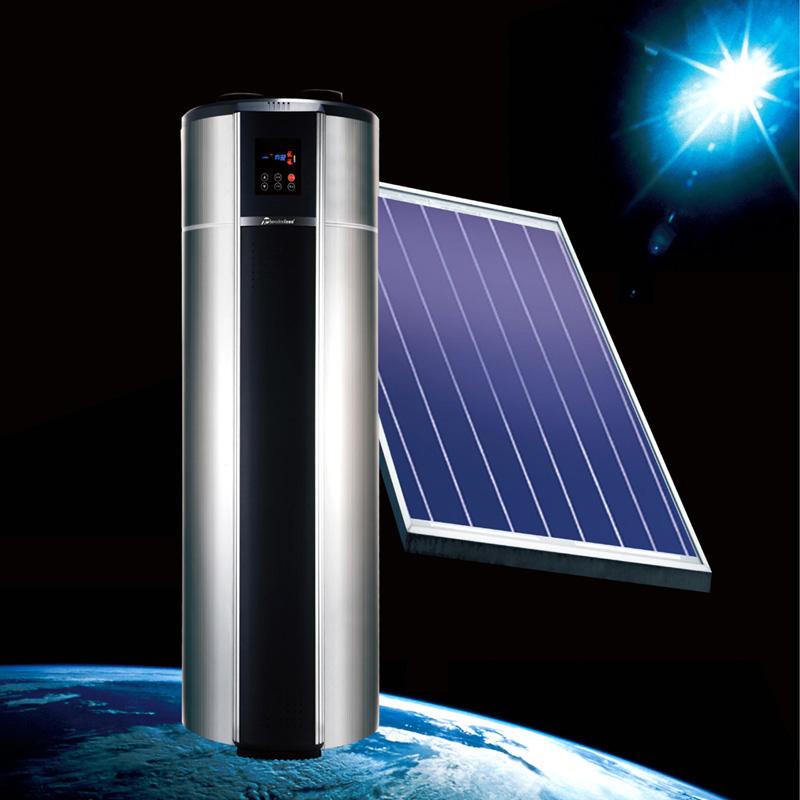

The X7 All In One Heat Pump R32 Connected Solar System Water Heater Boiler-Hybrid water heater:

Great volume of hot water

The water tank has larger capacity, constant temperature of great volume hot water, which meets the large demand of hot water for families; Food grade 304 stainless steel super thick inner tank with built in magnesium anode rods to prevent corrosion.

Selected materials

Apply Panasonic compressor which is special used for air source heat pump. External copper coil or 316 stainless steel heat exchange coil. The 360 degree supercharged foaming thickness reaches 50mm polyurethane insulation layer.

Kitchen air conditioning

Provide free kitchen air conditioning while producing hot water. One machine dual-use. Energy saving and comfortable.

Easy operation

LED color display operation; three heating modes: AUTO, ECO (economic) and HEATER (fast heating) with timer setting. Full intelligent reverse defrosting and fault self-check.

1. Double energy system by air source technology and smart electric water integrated technology.

2. All in one design, easy installation, save space.
3. Save energy , saving more energy by 70% comparing with ordinary water heater.
4. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
5. Supply water anytime, and not be affected by geographical and weather changing.
6. Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.

SPECIFICATIONS:

Model

RS-3.6FAD/150L

RS-3.6FAD/190L

RS-3.6FAD/260L

RS-3.6FAD/300L

Rated Input Power

0.8 KW

0.8 KW

0.8 KW

0.8 KW

Rated Heating Capacity

2.8 KW

2.8 KW

2.8 KW

2.8 KW

Rated current

3.6A

3.6A

3.6A

3.6A

Power Supply

220V/50HZ

Refrigerant

R134a /R410a

Compressor

Panasonic / Rotary

Outlet water temperature

60 ºC (highest temperature= 70ºC)

Capacity of Water Tank

150L

190L

260L

300L

Inner water tank

Stainless steel SUS304

Condenser coil

External: Copper Coil or  Inner: Stainless steel SUS316

Expansion valve

Electronic expansion valve

Air flow

450m3/h

Electric resistance

2KW

Heater current

9.1A

Working range without resistance

-7ºC-43ºC

Size

Ø650X1370mm

Ø 650X1490mm

Ø 650X1760mm

Ø 650X1890mm

Net Weight

79Kg

88Kg

98Kg

110Kg

Noise

48dBA

Competitive Advantage:

Fashion & modern design

Machinery & technology: Advanced mould machines and equipments ensure products performance and

reliability.

Quality control: 100% product performance testing.
